Choose your model Choose where your part is located Choose which part drawing you want to see
| Product | Stock code | Availability | Del. date | Price |
|---|
Position: 1
| Product | Remark1 | ||||
|---|---|---|---|---|---|

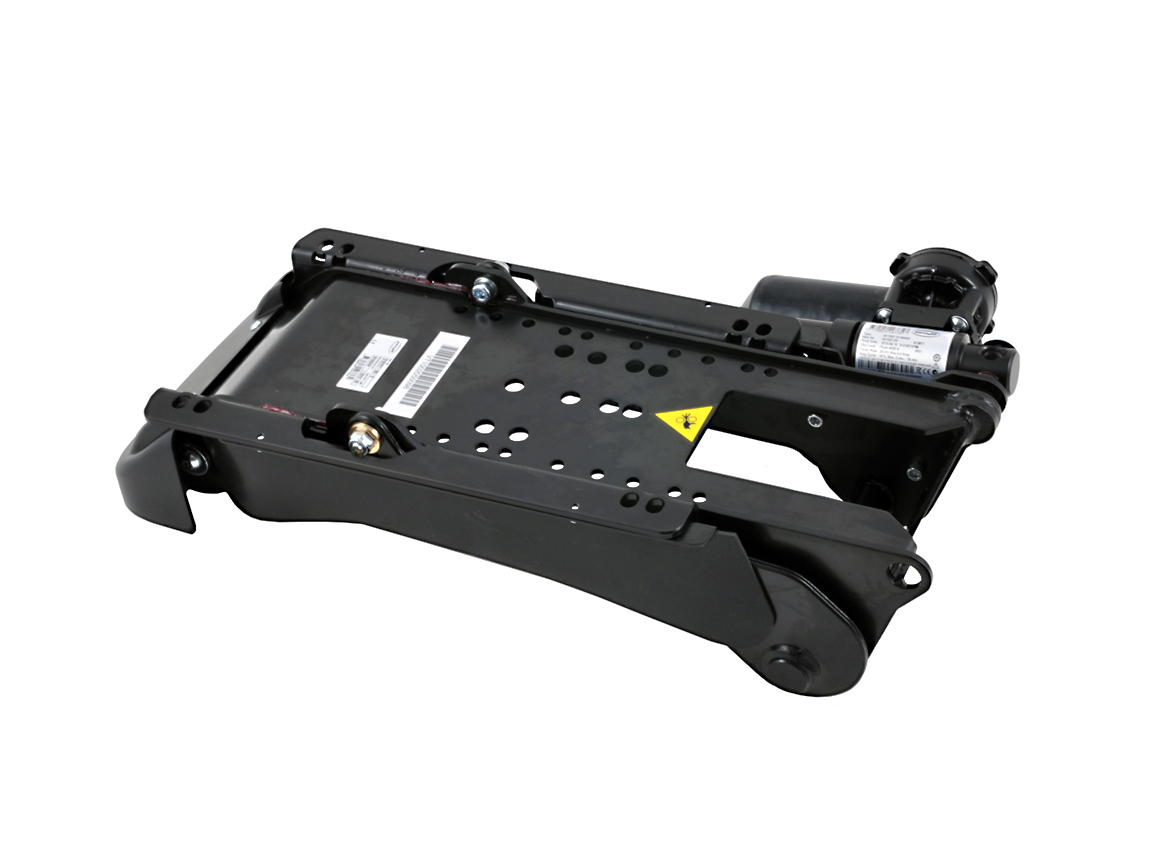

| SEAT TILT 45° SOFT POT |
|
|
Position: 4
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| DECAL TILT WARNING |
|
|
Position: 6
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| BOLT MC6S 6x10 fzb ISO 4762 |
|
|
Position: 9
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| LOCK NUT M8 FZB |
|
|
Position: 11
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| BEARING TILT C300/350 SPA RE PART KIT |
|
OBSOLETE WHEN ZERO INVENTORY |
|
Position: 15
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| BOLT K6S 8x16 fzb |
|
|
Position: 16
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| ACTU LA30 150-24 |
|
Use with Pilot+, VSI, VR2 |
|
Position: 17
| Product | Remark1 | ||||
|---|---|---|---|---|---|

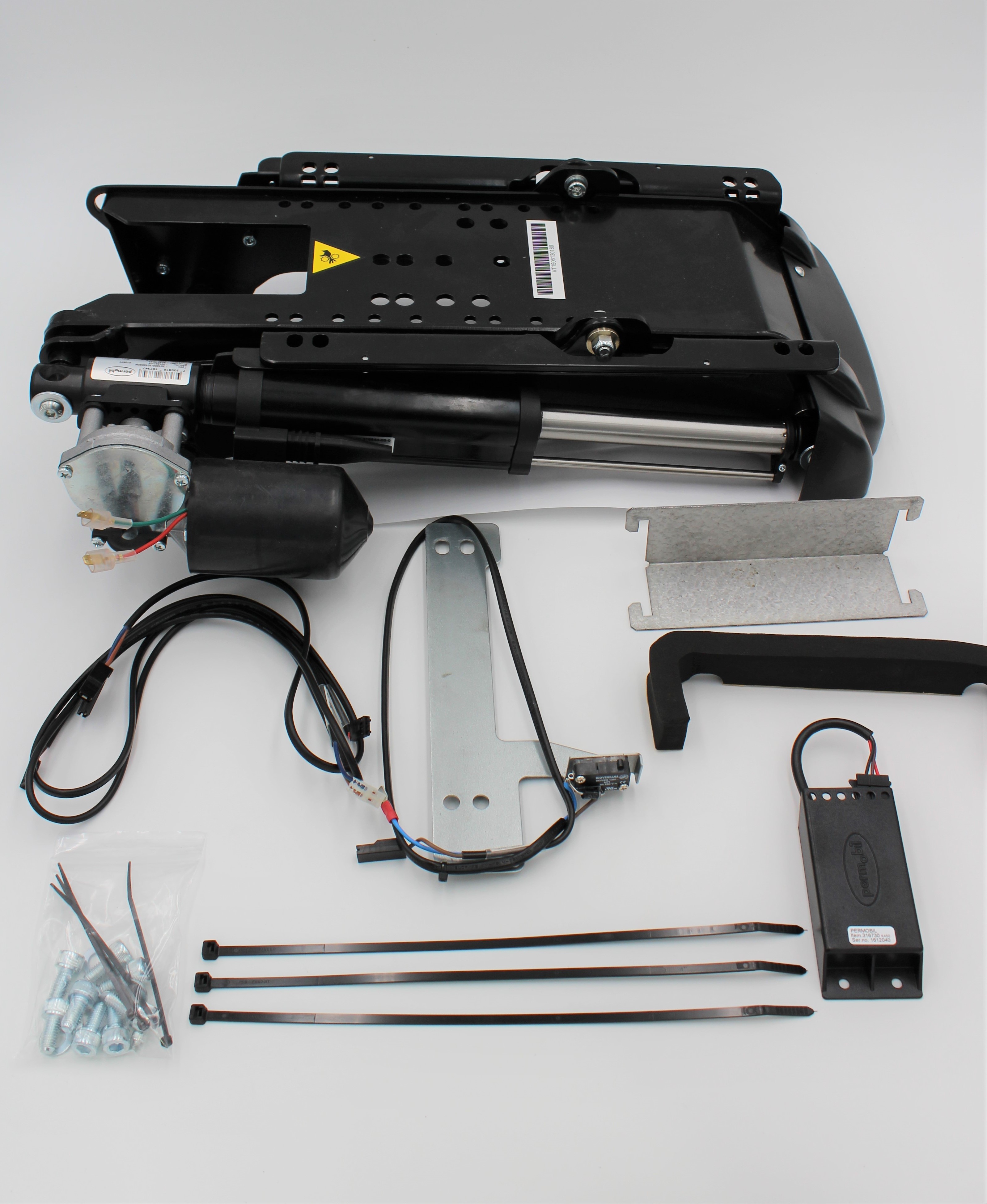

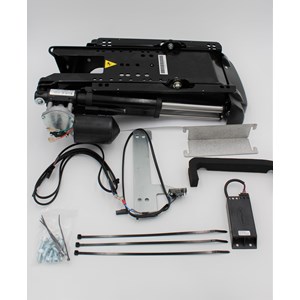

| LIMITSW KIT SEAT TILT - C300 |
|
THIS IS THE LIMIT SWITCH DEPICTED IN THE DRAWING |
|
||
| POSITION SENSOR 150mm SOF T POT C300/350 only |
|
THIS PART DIFFERS FROM WHAT IS SHOWN IN THE DRAWING |
|
Position: 20
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| BOLT MC6S 8x 25 fzb |
|
|
Position: 24
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| BOLT K6S 8x16 fzb |
|
|
Position: 25
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| SAFETY DEVICE SEAT TILT C300 |
|
|
Position: 30
| Product | Remark1 | ||||
|---|---|---|---|---|---|
| BEARING TILT C300/350 SPA RE PART KIT |
|
OBSOLETE WHEN ZERO INVENTORY |
|
