SHOCK ABSORBER REAR C300

1820451

SHOCK ABSORBER BLACK 100mm 550lbs

1828765

SPRING DF 1,2x8x40

1824513

REFLECTOR SIDE STR

1820324

REFLECTOR FRONT STR

1820314

CABLE CLIP 20x10x28 M6 0

612953-00-0

PROTECTION COVER

1824407

BOLT MF6S 3x12 fzb

600693-99-0

WHEELFORK RIGHT (pattern)

1822414

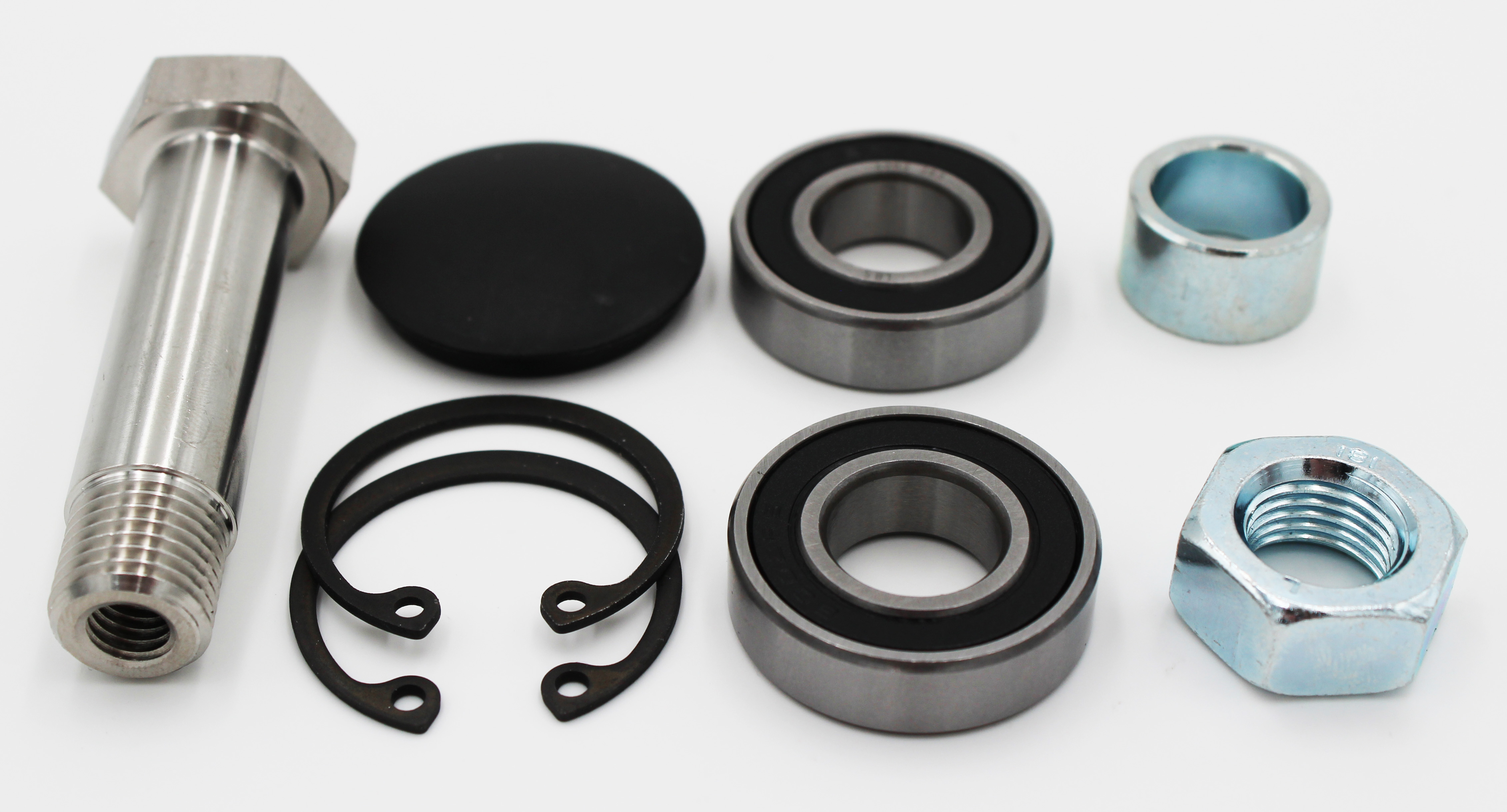

WHEELFORK AXLE KIT C350 M 210X65 C350

1822419

CIRCLIP SGH 32

600751-99-0

Ball bearing, 6002-2RS1

600752-99-0

BOLT WHEELFORK C300

1820457

NUT M14x1,5 8 Fe/Zn 8 C1 set of 30

1822626

PL PLUG REAR WHEEL CH2k Ch2s

311314-99-0

WHEELFORK LEFT (pattern)

1822413

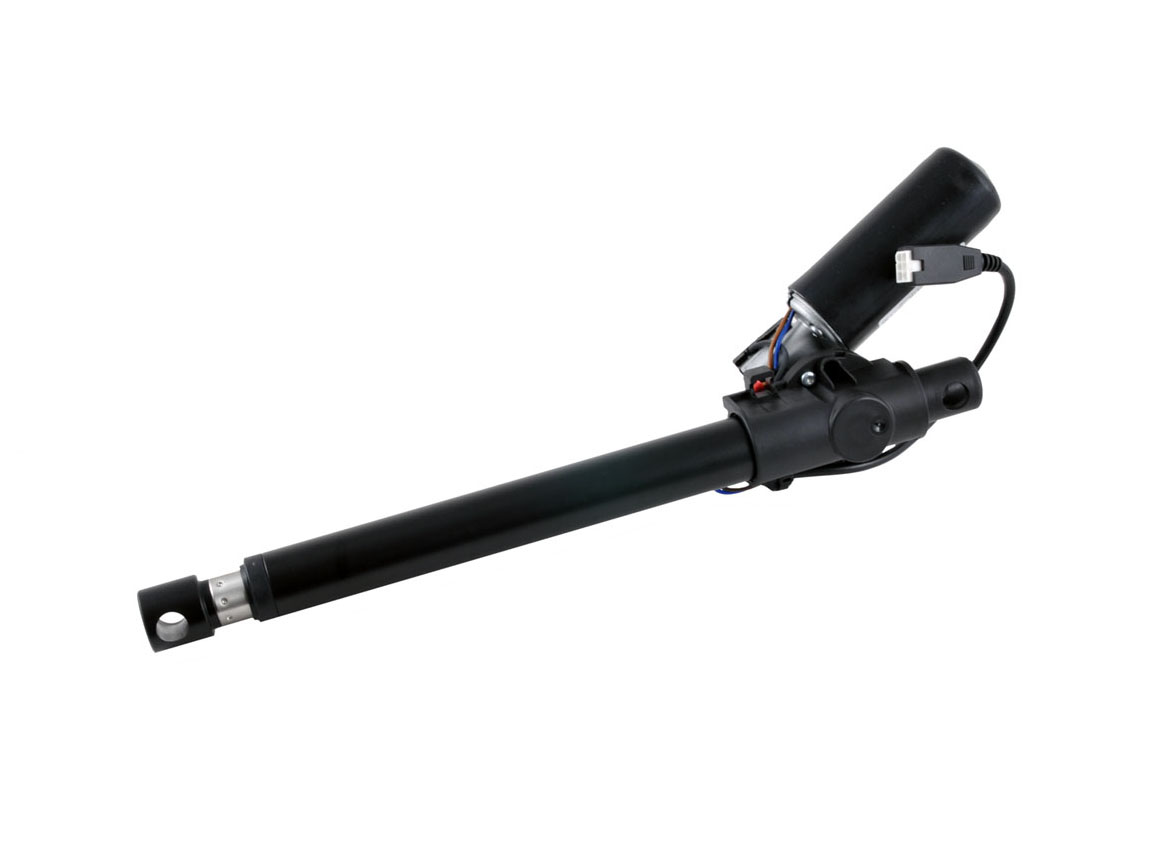

ACTU ICS LA28C 188+200 (STROKE)

1824320

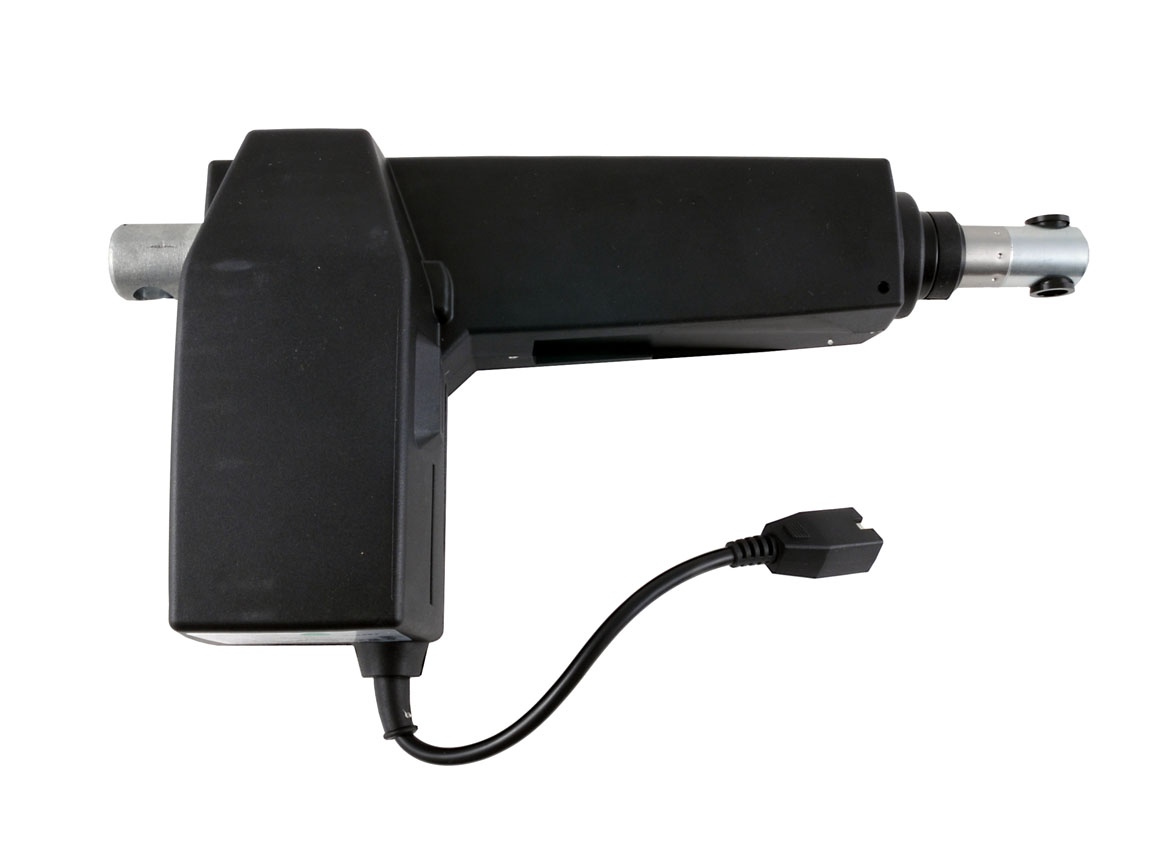

ACTU ICS LA31 188+100 (STROKE)

1824321

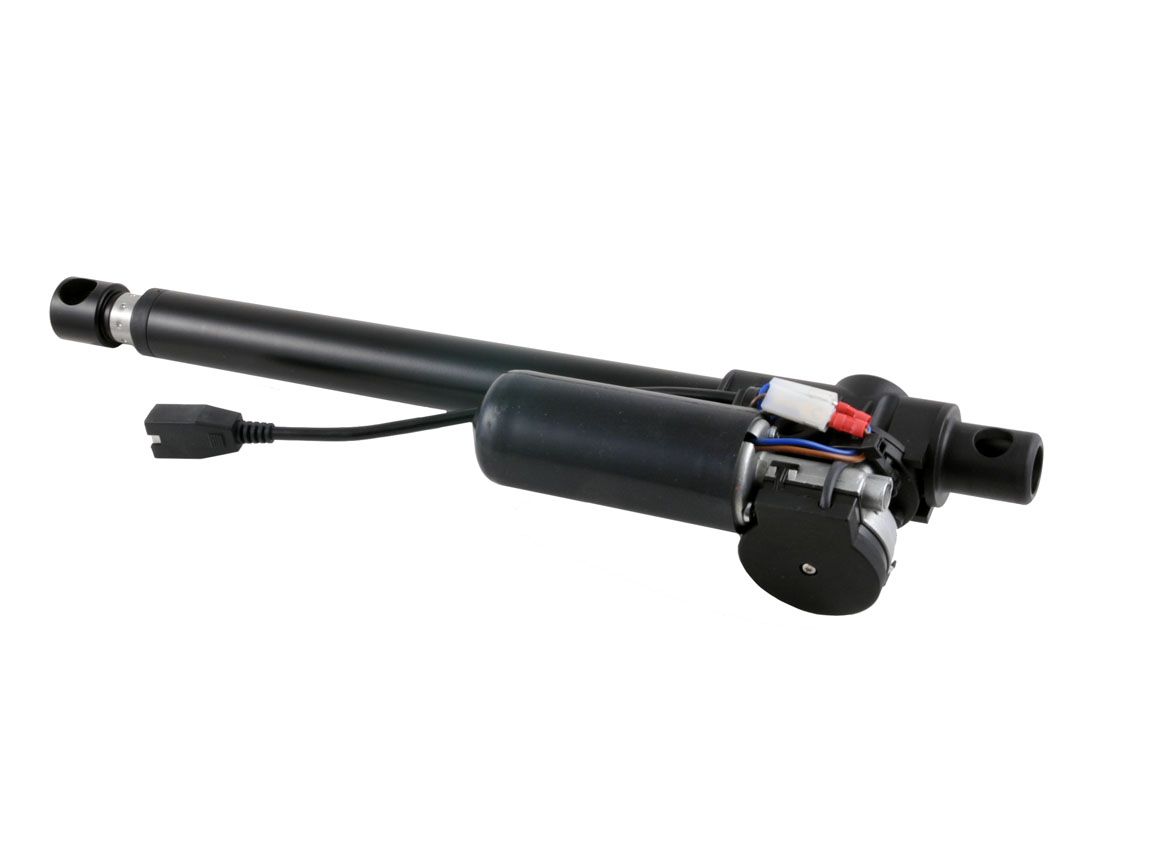

ACTU ICS LA28C 156+200 (STROKE)

1824313

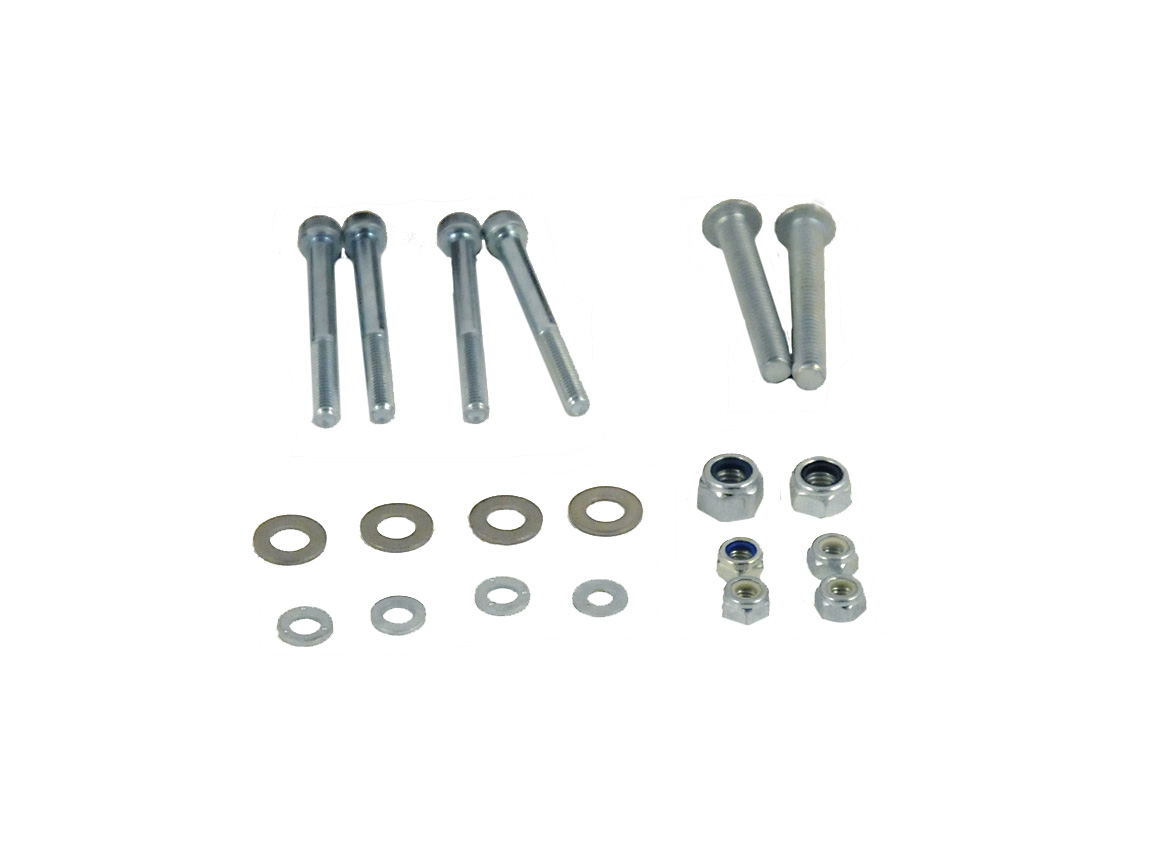

BOLT KIT ACTUATORS K450 HARDWARE KIT

1824273

BOLT MC6S 10x 50 fzb

601227-99-0

ACTUATOR BUSSING 30MM

302330-99-0

WASH BRB 10.5x20x2 fzb ISO 7089

600241-99-0

LOCK NUT M10 fzb ISO 7040

600229-99-0

FIXED SEAT ASSEMBLY

1824314

ANTI TIPPERS

1824310

STAR HANDLE KIT FRONT

1824408
