	WASHER BRB 8.4X16 FZB	600239-99-0			600239

Total: 1

Page size:

Total: 21

WASHER BRB 8.4X16 FZB

600239-99-0

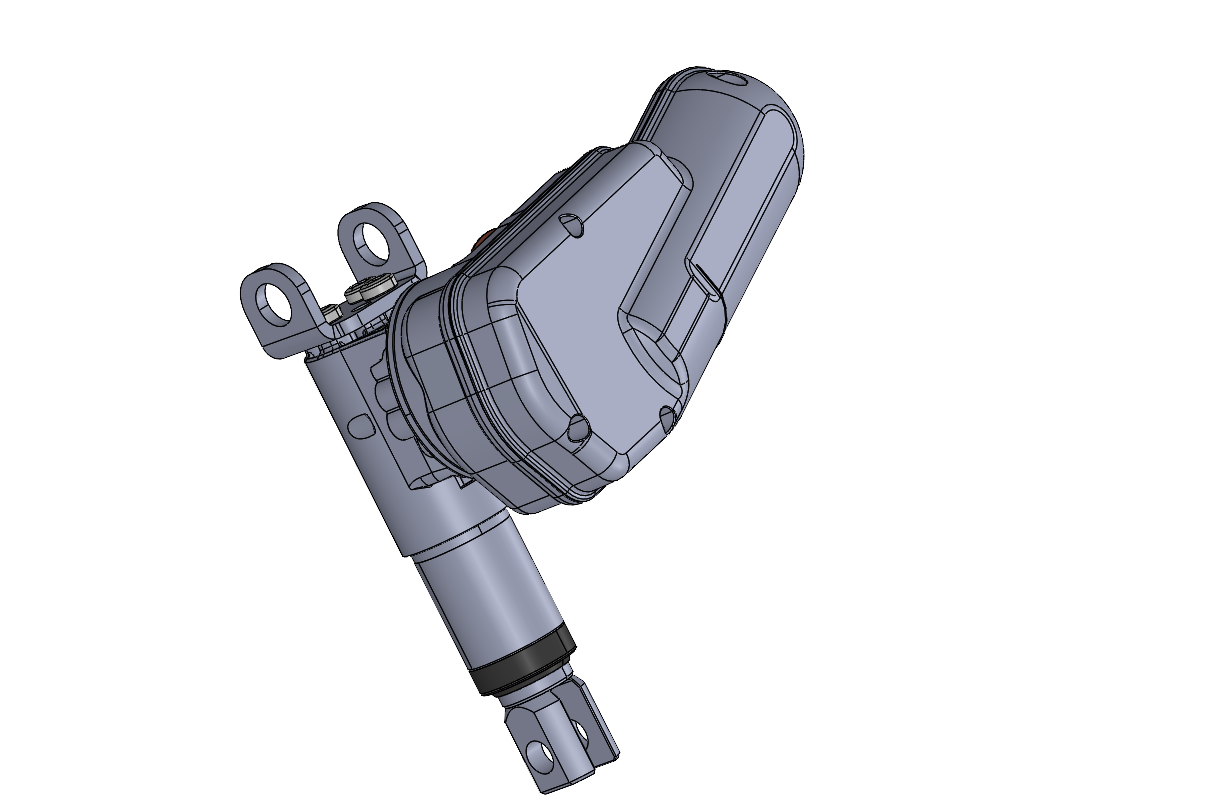

Actuator LA42, support wh eel, Corpus VS

337971
LOCK NUT M8 FZB

600228-99-0
CIRCLIP SGA 10

600271-99-0
BOLT K6S 8x20 fzb

601340-99-0
BOLT MC6S 8x 20 fzb ISO 4762

600203-99-0
BOLT MC6S 6x40 fzb

601756-99-0
STICKER READ INSTRUCTIONS

1831394
STICKER SUPPORT WHEELS LE FT

1831395
PLASTIC PLUG Ø32x9,5 (Ø28 )

1831100
WASHER 6,4x17x3

1831703
BALL BEARING 6001-2Z (12x 28x8)

1831701
SPACER 12,5/16 x 14,1mm

1831708
WHEELFORK CORPUS VS SUPPO RT WHEELS

1831704
WHEEL- SUPPORT WHEEL

1831101
SCREW M8x60 10.9 Fe/Zn HE XAGON SOCKET BUTTON HEAD

1831702
BOLT KIT -SUPPORT WHEELS ACTUATOR

1831096
SUPPORT WHEELS ASSEMBLY- NO ACTUATOR

1831098
REPAIR KIT WHEELFORK SUPP ORT WHEEL CORPUS VS

1831099
U JOINT CAPS BEARINGS KI T SUPP WHEELS

1831097

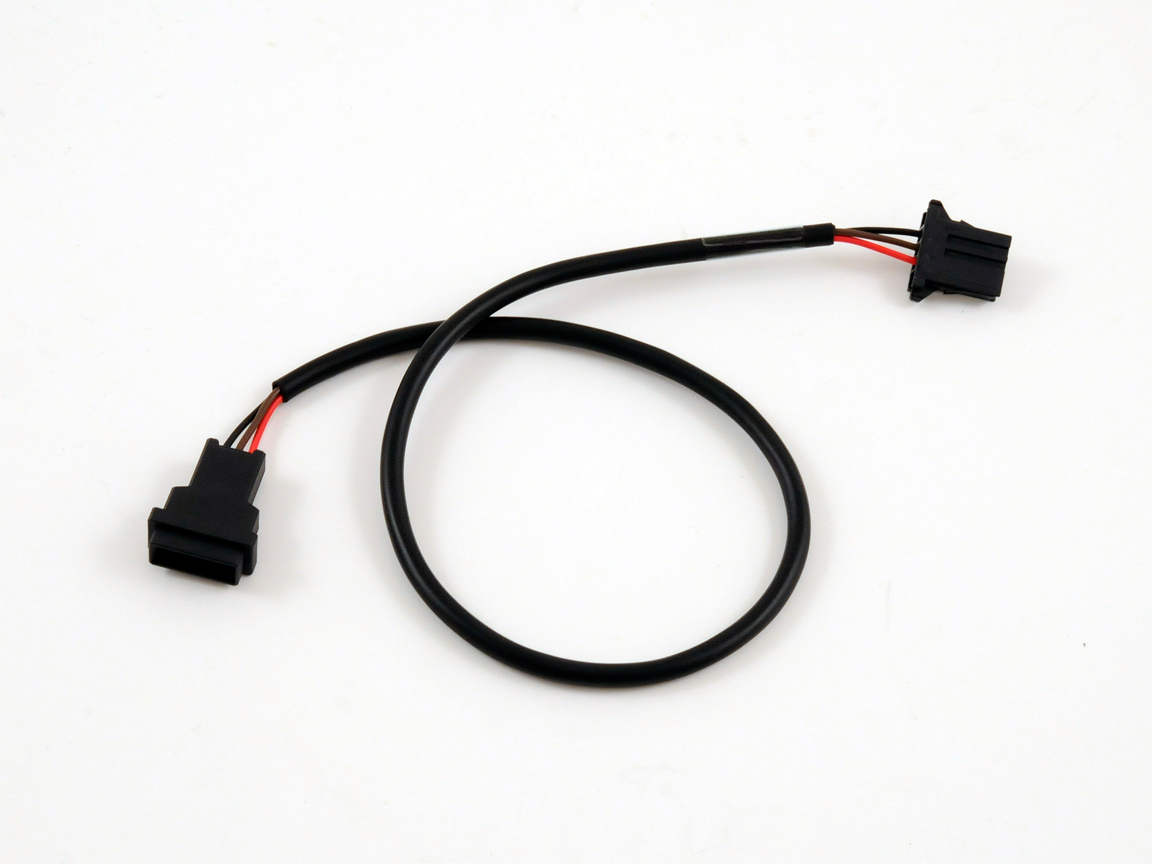

Cable, .3M, support wheel s, Corpus VS

311409

Total: 21
